Tools - Github with Github Desktop

(Adapted from Rémi Daigle’s Datamanagement Workshop)

Using version control, which allows us to track changes in a file or a collection of files, helps us avoiding situations like this:

via PHDComics

via xkcd

The Git version control system has become the de-facto standard in software engineering for version control and is now also used by scientists to develop reproducible workflows, to collaborate and to share their code.

Things are a bit complicated because there are actually three different things that we will making use of:

• Git is a free and open source distributed version control system designed to handle everything from small to very large projects with speed and efficiency.
• GitHub is an online platform for hosting projects using Git. It includes a source-code browser, in-line editing, wikis, and ticketing. Free for public open-source code.
• GitHub Desktop App GitHub Desktop is Git client with a nice user interface that simplifies many of the git workflows. It also provides a seamless way to contribute to projects on GitHub.

Setting up Github and Github Desktop

1. The first step is to make a personal account on GitHub. How to do this is describe here: Creating an account on GitHub
2. After that you can install Github-Desktop to interface with GitHub. Follow the steps described on Installing GitHub Desktop for the operating system of your computer.
3. Now connect the installed GitHub Desktop to your GitHub account using the Authenticating to GitHub in GitHub Desktop instructions.
4. Test your installation and connection (following the Tutorial on CodeCademy):
   • You should now see the Let's get started! screen. Chose the Create a New Repository on your Hard Drive option
   • In the following screen:
     • Name your repository Hello-ISAT-420
     • Change the local path to the folder in which you are keeping all your ISAT 420 materials
     • Then click the button Create Repository
   • You are now ready to publish this repository to GitHub.com (see below)

Git Workflows

Merge changes from upstream into a forked repository

• Use GitHub-Desktop to merge in changes into a forked repository:
  1. Make sure that you have committed and pushed all local changes before the merge
  2. Click Fetch Origin to make GitHub-Desktop aware of all changes on GitHub.com
     • This is always something that you should do when you come back to Github-Desktop after a while.

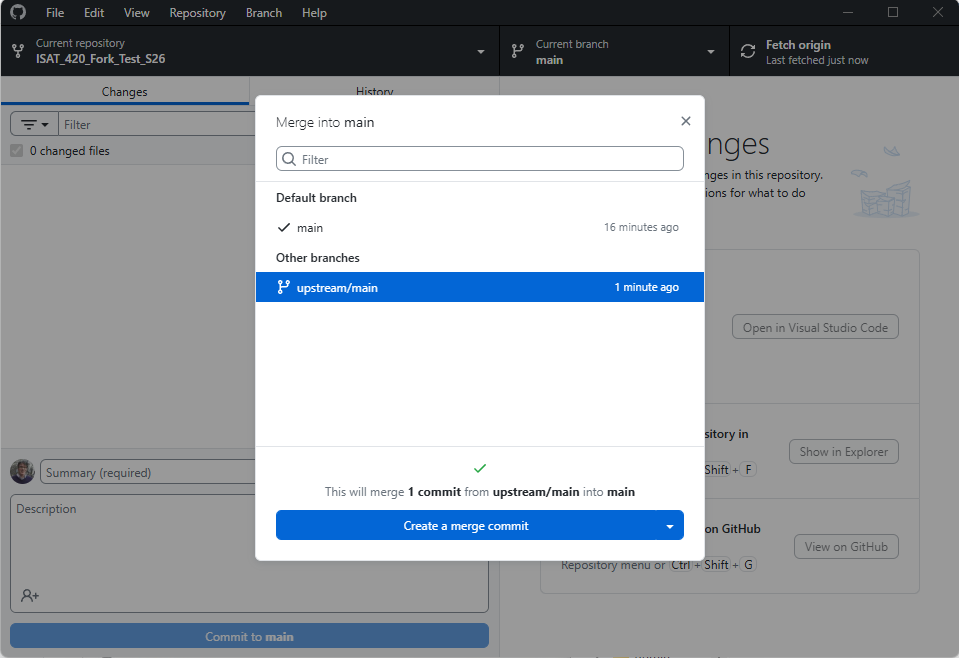

  3. Got to Branch –> Merge into current branch This will allow you to merge any changes that happened in a different brach (e.g. in the original repository that you forked) into your branch
  4. Select upstream/main from the Other branches and click Create a merge commit
     • If there are any changes in the original repository that you forked (the upstream of your fork in git lingo) it will now attempt to merge all these changes into your repository.
     • Sometimes, this might cause a merge conflict, if you already edited a file that would be overwritten by a change in the upstream. In this case, you would need to manually decide which file/ or part of files you want to keep.
  5. Click Push origin to push any changes from your computer to GitHub.com

Standard workflow for making changes to a repository

1. Fetch the latest changes from GitHub
   • Click Fetch origin to make GitHub-Desktop aware of all changes on GitHub.com
   • This is always something that you should do when you come back to Github-Desktop after a while.
2. Bring any changes from GitHub.com to your local hard drive

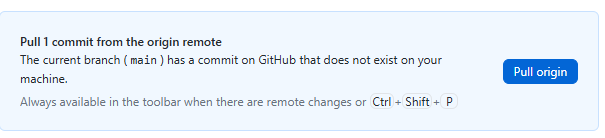

   • Click Pull Origin
3. Make your changes in this branch
   • Make any changes to the files in this branch using your preferred code editor (e.g. Visual Studio Code, Jupyter Notebook, etc.)
   • Make sure to save your chenges in the code editor before going back to GitHub-Desktop
4. Commit your changes
   • In GitHub-Desktop, go to the Changes tab
   • Write a descriptive commit message and click Commit to <branch-name>
5. Push your changes to GitHub
   • Click Push origin to push your changes to the remote repository on GitHub.com
